People, Land and Water at the
Headwaters of the
Rappahannock River Basin
10 Least-protected subwatersheds: The Lower Rush
The Lower Rush subwatershed is an
area of 2,855 acres or 4.46 square miles, just south of the town of Washington.
Map 18: Lower Rush Subwatershed Surface Water shows the Lower Rush with its
surrounding subwatersheds, roads, and streams.
When we assessed all 26 subwatersheds in the County, the
Lower Rush was determined to be one of the least well protected. Special aspects
of interest in the Lower Rush include the following:
- The
segment of the Rush River that flows into the Lower Rush subwatershed has
been identified by the Virginia Department of Environmental Quality (DEQ)
as “303d Impaired” for ecoli bacteria.
- The
Rush River sometimes is at a very low flow or no flow.
- The
Town of Washington has obtained a permit from VA DEQ to discharge the
effluent from a public sewage treatment plant into the Rush River
immediately upstream of the Lower Rush subwatershed.
- Landowners
and residents in the Lower Rush subwatershed have indicated strong
interest in the quality of the water in the Rush River and in the health
of their watershed, as evidenced through their participation in public
meetings on the subject, their participation in RappFLOW’s Upper Thornton
Watershed survey of landowner concerns and values, and their volunteer
work to assist in this study.
- The
Lower Rush subwatershed includes a mix of agricultural, residential, and
commercial land uses that are representative of the land uses in Rappahannock
County. By analyzing the Lower Rush subwatershed, we may identify factors
and watershed management tools that will be useful to apply more broadly
throughout the county and in similar rural Virginia watersheds.
10.1 Rush River and Tributary Streams
The Rush River has its headwaters in the Shenandoah National
Park and flows about 12.5 miles through the Upper, Middle, and Lower Rush
subwatersheds before its confluence with the Thornton River near Rock Mills.
Big Branch tributary joins the Rush at the northern edge of the Lower Rush
subwatershed. See Map 17.
10.2 Lower Rush Easements
Map 21 shows easements (VOF) in the Lower Rush
Subwatershed. It shows all easements as of the May 2008 database, and in
separate symbology those easements that were in place as of 2005. This shows
the growth in easement lands over the past three years.
10.3 Lower Rush Topography and Soils
Map 19 shows the topography of the subwatershed. Most of
the area is fairly flat, between 500 and 600 feet in elevation. On the northwestern
edge is (name) mountain, at elevation 1200 feet, and on the eastern edge is Long
Mountain at 900 feet.
Map 20 shows the erodible soils on
nonforested areas in the Lower Rush subwatershed.
10.4 Streams, ponds, wetlands and floodplains in the Lower Rush subwatershed.
There are a little over 15
miles of streams and about nine acres of ponds in the Lower Rush subwatershed,
as calculated from the National Hydrology Database. One small, unnamed
tributary to the Rush River flows from the eastern side of the town of Washington.
Another small, unnamed stream flows from the western side of the town into Big
Branch, which in turn is a tributary to the Rush. On the basis of the
National Wetlands Inventory we calculated there are only about 22 acres of
wetlands in this subwatershed. One-hundred-year floodplains as defined by FEMA
are also shown in map 18.
The
amount of water flowing in the Rush River varies greatly. From 1954 to 1977,
the US Geological Survey had a water flow monitoring station on the Rush River
just outside the town of Washington. The meter recorded the cubic feet of
water flow per second (cfps), and the average flow was recorded on a daily
basis. For that thirteen-year period, the average daily flow varied from a low
of zero (0) cfps on many occasions, to a high of 1140 mean daily cfps on August
18, 1955. The highest flow rate recorded was 2880 cfps on October 9, 1976.
The lowest annual mean was 7.70 cfps in 1966 and the highest annual mean was 30
in 1972.
All
residents in the Lower Rush subwatershed obtain their drinking water from
wells. Our survey of landowner values and concerns (see section 4 below) offers
12 water issues and respondents were asked to choose THREE of the most concern
to them. Out of these, 88% of respondents in the Lower Rush subwatershed chose
“quality of well water” and 44% cited “adequate supply of good drinking water”
as one of their biggest concerns.
10.5 Water Quality
– Rush River
Water quality data for the Rush River and its tributary
streams are available from four main sources:
- historical water quality data from the VA DEQ ambient monitoring station
near the town of Washington;
- information about the sources of e coli bacteria, collected by VA DEQ in
conjunction with the Washington application for sewage effluent discharge;
- Virginia Save Our Streams (SOS) invertebrate monitoring station at that
same location;
- data collected by RappFLOW volunteers in the spring of 2006 at 13
locations along the Rush River and tributaries.

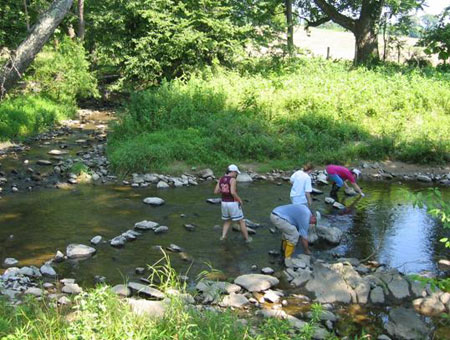

RappFLOW volunteers
collecting water samples in Rush River in July 2006. Photo by Ellie Clark.
10.5.1 DEQ Monitoring Data for Rush River
In 2004, the VA DEQ designated a segment of the Rush River
as “303d impaired” for fecal coliform bacteria. Sufficient exceedances of the
instantaneous fecal coliform bacteria criterion (4 of 17 samples - 23.5%) were
recorded at DEQ's ambient water quality monitoring station 3-RUS005.66 at Route 211/522 to
assess this stream segment as not supporting of the Recreation Use goal for the
2004 water quality assessment.
Graph 1 shows the historical data from the DEQ monitoring
stations on the Rush River from 1990 to 2008 for fecal coliform, with the
extremely high values shown. Fecal coliform
bacteria shall not exceed a geometric mean of 200 fecal coliform bacteria per 100
mL of water for two or more samples over a calendar month Graph 2 shows
more detail for the values below 500 colonies/100 ml.

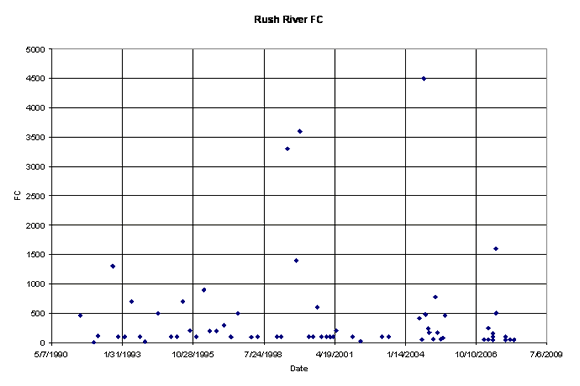

Graph 1: Fecal coliform values from DEQ stations on Rush River.

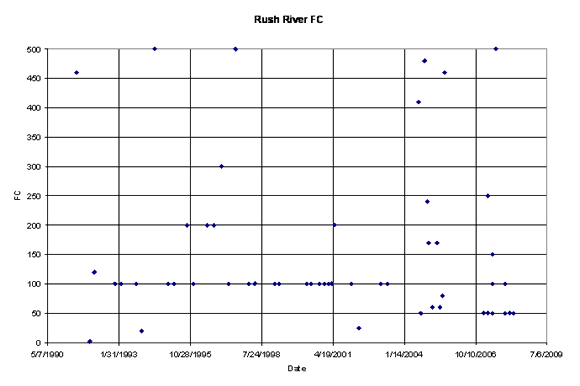

Graph 2: Fecal
coliform data from DEQ monitoring stations on Rush River, showing values up to
500 colonies per milliliter.
10.5.24 Sources of E.
coli
“Bacterial source tracking” is a method used to identify
the percentage of wildlife, human, livesk, and pet sources of E. coli within
a water sample. MapTech, a contractor to the VA DEQ, studied monthly water
samples from the DEQ monitoring station on the Rush River outside the town of Washington
between July 2004 and July 2005. In general, on those occasions when the E.
coli levels exceeded the state water quality standards (September 2004 and
March 2005), the predominant source was livesk. When E.coli levels did not
exceed the standard, the predominant sources were wildlife, livesk, and
pets. In none of the cases was the majority source attributed to humans. [42]

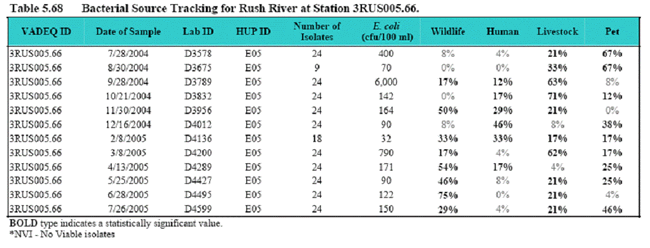

This
chart shows that on those occasions when the E. coli levels exceeded the
state water quality standards (September 2004 and March 2005), the predominant
source was livestock.
The
following is from the TMDL study.[43]
This study attributes over 95% of the source of fecal coliform loadings in the
Rush watershed to pastures.
A synopsis of the fecal coliform loads
characterized and accounted for in the Rush River (VAN-E05R-01) watershed along
with average fecal coliform production rates are shown in Table 3.33. The total
fecal coliform production by all sources in the Rush River (VAN-E05R-01)
watershed is 6.00x1015 cfu/yr.

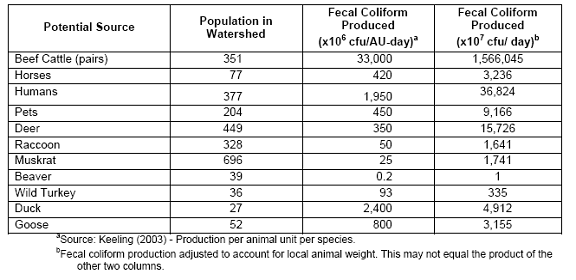

Table 3.33. Potential fecal coliform
sources and daily fecal coliform production by source in Rush River
(VAN-E05R-01) watershed.
Based on the inventory of fecal coliform
sources, a summary of the contributions made by the nonpoint sources to annual
fecal coliform loading directly to the stream and to various land use
categories is given in Table 3.34. Distribution of annual fecal coliform
loading from nonpoint sources among the different land use categories is also
given in Table 3.34.
From Table 3.34, it is clear in the Rush River
(VAN-E05R-01) watershed that nonpoint source loadings to the land surface are
more than 153 times as large as direct loadings to the streams, with pastures
receiving about 96% of the total fecal coliform load. It could be prematurely
assumed that most of the fecal coliform loading in streams originates from
upland
Bacteria TMDLs for Rappahannock River Basin 3-33
sources, primarily from pastures. However, other factors
such as precipitation (amount and pattern), manure application activities (time
and method), type of waste (solid versus liquid manure), proximity to streams
and environmental factors also impact the amount of fecal coliform from upland
areas that reaches the stream. The HSPF model considers these factors when
estimating fecal coliform loads to the receiving waters, as described in
Chapter 4.
Table 3.34. Annual fecal coliform loadings to the
stream and the various land use categories in the Rush River (VAN-E05R-01)
watershed.
10.5.3 Macroinvertebrate data
The macroinvertebrate monitoring station on the Rush River
is near the Old Mill off Library Road. The table below shows the index for
that site since 2001.
Rush River at Routes
211/522 (Station R-3) |
|
Quarter |
Index |
Winter 01 |
9 |
Spring 01 |
12 |
Summer 01 |
12 |
Fall 01 |
10 |
Winter 02 |
10 |
Spring 02 |
9 |
Summer 02 |
9 |
Fall 02 |
no data |
Spring 03 |
9 |
|
Quarter |
Index |
Summer 03 |
7 |
Winter 06 |
10 |
Spring 06 |
7 |
Summer 06 |
8 |
Fall 06 |
6 |
Winter 07 |
6 |
Summer 07 |
7 |
Winter 08 |
9 |
|
10.5.4 RappFLOW water quality monitoring
In the winter of 2006, many residents and landowners in the Rush
River watershed were concerned about water quality in the Rush River. This
concern was expressed in several meetings related to the town of Washington’s
plan to discharge sewage effluent into the Rush River. In response to these
concerns, RappFLOW set up a program to monitor water quality at several
locations along the main stem of the Rush River and its tributaries. James
Beckley of the VA DEQ assisted by training RappFLOW leaders in the use of
equipment and materials for monitoring Dissolved Oxygen, pH, temperature, and
E. Coli bacteria, and in establishing Quality Assurance Procedures so that the
data will be useful to the DEQ. Selection of locations for monitoring was
based on several considerations, including the desire to identify potential
sources of the bacterial impairment of the streams, to provide a baseline
reading on Dissolved Oxygen at various locations before the sewage treatment
plant is constructed, and accessibility of the sites by volunteer monitors.
Trained volunteers collected and
summarized data in April, May, July, and August 2006, at sixteen locations
along the Rush River and its tributaries. Readings for E. coli in July are
shown on Map 22: RappFLOW Monitoring E. coli. Note that E. coli exceeded
standards at several locations. Readings for Dissolved Oxygen in August are
shown in Map 23: RappFLOW Monitoring Dissolved Oxygen.
10.6 How is the land used in the Lower Rush Subwatershed?
The ways in which the land is used, especially the extent to
which forest protects the streams, is the main determinant of the health of the
watershed.
10.6.1 Residential
uses
There are an estimated 120 dwellings in the subwatershed.
At an average of 2.5 persons per dwelling (Census 2000), there are an estimated
300 residents. This is a population density of approximately 67 persons per
square mile. By comparison, the overall county population density in 2000 was
26.2 persons per square mile.[44]
10.6.2 Land Cover
Land cover in the subwatershed
area can most easily be visualized through aerial photos. Map 24 shows the
aerial photo taken in 2002.
By analyzing the National Land Cover Database, (USGS 2002),
we calculated that the Lower Rush subwatershed is approximately 46 percent
forest cover, about 48 percent hay/pasture, about 3 percent low intensity
residential, and contains small percentages of transitional land cover,
industrial, row crops, open water, or wetlands.
10.6.3 Vegetation along
Streams
There are about 360 acres of area within 100 feet of the
streams in the Lower Rush subwatershed. We used two methods to assess the
vegetative cover of this buffer area.
Method 1: Aerial Photo. Using an aerial photo, we
classified this stream buffer area as to whether it is fully vegetated
(forest), partially vegetated, few or no trees, or a road crossing. This
result is shown in Map 9: Stream Buffers. Using this method, the approximate
percentages of stream buffer areas in the lower Rush are shown in Table 7:
Buffer Vegetation |
Buffer Area in Acres |
Percent of total buffer area |
Fully vegetated |
165.7 |
46 |
Partially vegetated |
96 |
26 |
Few or no trees |
54 |
15 |
Road crossing |
44 |
12 |
Table 7: Stream Buffer Vegetation
in Lower Rush Subwatershed
Method 2: NLCD. We extracted a 100-foot buffer area
along the streams from the National Land Cover Database and calculated the
percentage of that buffer area that was classified as forest by the NLCD. The
result, 47.4 percent forested, correlates well with the results using the
aerial photo method. The aerial photo method is more accurate and more current
than the NLCD with respect to specific locations along the stream, but the
overall percentage of forest cover is nearly the same using both methods.
Map 25 shows the stream buffer vegetation in the Lower Rush
Subwatershed.
10.6.4 Roads, Private
Roads and Driveways in the Lower Rush
In addition to public roads, there are about 34 miles of
private roads, lanes, driveways and farm roads in the Lower Rush subwatershed.
10.6.5Road/Stream
Intersections
Using the method described in
section x above, the Lower Rush contains 12.26 acres of road/stream
intersection area. The road/stream intersection area shown in Table 7 above
is considerably greater (44 acres), because that analysis is based on the
aerial photo which reveals farm roads and other private roads that are not
included in the county roads map.
10.6.6 Stream Buffers
and Land Use
In the Lower Rush subwatershed, most of the stream buffer
areas that are unprotected by forest cover are found in areas of agricultural
land use. In most cases where streams are flowing through non-agricultural
residential land use, they are in forest. This is the case even on small
residential parcels. On the small residential parcels where a stream is
flowing through the property, compromises to the stream buffer area are
typically resulting from roads and driveway crossings.
There are approximately 210 parcels in the Lower Rush
subwatershed. Twenty-one parcels are 50 acres or greater. The parcels that
are 50 acres or more represent approximately 43% of the total Lower Rush
subwatershed area.
10.6.7 Agricultural/Forestal
Districts
As shown in Map 26, a large section of land in the Lower
Rush subwatershed is in Ag/Forestal District.
10.6.8 Lower Rush Zoning
As shown in Map 27, the land area of the Lower Rush
subwatershed is predominantly zoned Agricultural. In Agricultural zone, one
dwelling is permitted per 25 acres. However, many smaller parcels predated the
zoning ordinance and thus have higher density of dwellings. About eight
percent of the Lower Rush is zoned residential or commercial. This is one of the
three subwatersheds having the highest percentages of commercial and
residential zoning in the County.
The County’s main General Commercial zone of 60 acres on
Rte. 211 is in the northwestern part of the Lower Rush subwatershed. There is
also an area of a little less than 200 acres on the northeast part of the
subwatershed that is zoned Rural Residential (5 acre parcels).
10.6.9 Future Development in Lower Rush Subwatershed
In the Lower Rush subwatershed, under current zoning and
subdivision restrictions, approximately 110 new developable parcels could be
subdivided from existing parcels in agricultural and residential zones. In
addition, there are about 90 existing parcels that do not have dwellings on
them. In combination, the construction of dwellings on existing parcels plus
newly subdivided parcels could yield about 200 new dwellings. At an average of
2.5 persons per dwelling, this would yield an additional 500 population beyond
the current estimate of 300 residents, and a population density of about 180
persons per square mile.
At present, there are on average about .16 miles of private
road or driveway per developed parcel in the Lower Rush. Development of 200
parcels would add about 32 miles of private road to the present 34 miles. This
would further fragment forests and compromise stream buffer areas, and
contribute to sedimentation and erosion of streams.
Next: Least-protected subwatersheds: White Walnut Run
Back to TOC
|
